Bluegiga Bluetooth Smart Software

General

Please contact us for more information | Buy now from Bluegiga distributor

Bluegiga Bluetooth Smart SW is including the software running on the Bluegiga Bluetooth Smart products, such as BLE112 and BLED112. The SW is also offering the SW development kit for developing the applications onto the modules or/and the host processor side like microcontroller or PC's. Several tools and examples are also offered as a part of the package in order to easily develop the great Bluetooth 4.0 product using Bluegiga products.

The key features from Bluetooth Smart technology are:

Bluetooth 4.0, single mode compliant supporting master and slave modes
Multiple simultaneous connections supporting on the master mode (v.1.1 Beta)

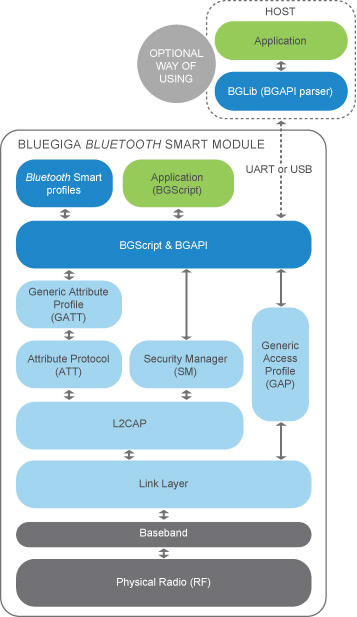

Integrated Bluetooth Smart (4.0) stack - GAP, GATT, L2CAP, SMP
Multiple Bluetooth low energy profiles as a reference and example

For development purposes, the main tools and examples are:

BGAPI^TM for using the Bluegiga Smart product for the easy and efficient way.
Flexible and simple in-module profile development through Profile Toolkit^TM
BGScript^TM for the fast in-module application logic development withouth having a need for deeper understanding of programming and for heavier programming tool installations.
PC Graphical UI for testing and controllling the Bluegiga Smart products.
BGLib^TM C-library for developing the application on the host processor side using BGAPI^TM
Example applications and codes for showing how to develop profiles with BGScript and how to use the SW with the different platform.

1.0.3 - Production version:

Fully qualified and tested SW ready which can be used for the mass production.
This SW is supporting all the key features of Bluetooth Smart.
Both BGSript and external usage of BGAPI through host processor are supported.
Compatibility with the main commercial solutions, e.g,. iPhone 5, iPad (4th generation)

1.1.0 Beta - Evaluation:

Multi-connection support for the master role
BGAPI's supporting the cable replacement use case, e.g., enabling E2E flow control
BGScript addition features added for further easing up the application development.
Improving the memory usage for enabling the larger applications in the modules.

1.1. Beta is targeted to achieve the production quality in Q1/ 2013.

Both versions and the supporting documents are available at Bluegiga Tech Forum
