Bluegiga iWRAP Software

General

iWRAP

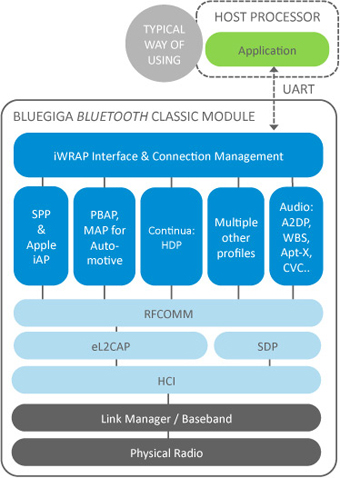

iWRAP is an embedded Bluetooth stack for Bluegiga's Bluetooth classic modules (WT32, WT12, WT11i, WT41). It exposes a powerful yet easy-to-use command interface to manage Bluetooth operations. iWRAP hides the complexity of Bluetooth protocol stack and profiles from the end user. iWRAP can be used for almost anything from simple data or audio applications to more complex use cases where interaction with several Bluetooth enabled devices are needed - or even multi-profile environments for simultaneous audio and data connections.

The fifth generation iWRAP Bluetooth stack is targeted at Bluegiga’s Bluetooth classic modules. By enhancing the compatibility with Apple’s iOS devices, the iWRAP5 adds new industry leading features, such as Apple iAP profile support for Apple iOS devices and Hands-Free Profile v.1.6 with Wide Band Speech codec. In addition, the iWRAP5 software offers Continua 1.5 support for the Health Device Profile, advanced HID support and more than twenty other new features and improvements for supporting the Bluetooth ecosystem.

iWRAP5 software is available at https://www.bluegiga.com/support.

Please contact us or register to Tech Forum to get the detailed design instructions.

Benefits

A simple ASCII based command and response API

Easy to use and learn
Fast application development
Low resource requirements for the host

A wide range of Bluetooth profiles

Enables the use of multiple profiles in parallel

Customizable by Bluegiga Technologies

Possible to add new features and profiles
Offers product differentiation at low risk
No Bluetooth development skills or tools are needed

On the field upgradable

Bluetooth qualified

Proven interoperability

Target Applications

Cable replacement: Support for Bluetooth Serial Port Profile
Medical and healthcare: Support for Bluetooth Health Device Profile
Hands-Free audio: Hands-Free and Headset profile support. Optional echo cancellation and noise reduction algorithms available
Stereo audio: High quality audio streaming via A2DP, mobile phone calls via Hands-Free profile, phone book management, Internet access via dial-up networking. Optional echo cancellation and audio improvement algorithms available
Apple accessories : Support for iAP over Bluetooth profile
Human Interface Devices : Support for HID mouse, keyboard, etc. emulation
Industrial: Single and multipoint operation. Several optimizations for latency, low power modes, GPIO and AIO replacement
Various consumer applications

Download iWRAP Software Comparison Chart

Download iWRAP5 Bluetooth stack presentation

Key Features

A fully embedded Bluetooth stack with:

Thirteen integrated Bluetooth profiles
Apple iAP over Bluetooth support
Two Bluegiga proprietary profiles

Bluetooth 3.0 compliant

Secure simple pairing support
Seven simultaneous connections
600kbps data rate

Supported Bluetooth profiles:

Serial Port Profile (SPP) : DevA and DevB
Bluetooth Health Device Profile (HDP) : Sink and source modes
Dial-up Networking Profile (DUN) : Terminal emulation
Object Push Profile (OPP) : OPP server and client
File Transfer Profile (FTP) : FTP client
Human Interface Device (HID) : HID device
Advanced Audio Distribution Profile (A2DP) : Sink and source modes
A/V Remote Control Profile (AVRCP) : AVRCP controller and target
Hands-Free Profile (HFP) v.1.6 : HPF and HFP-AG modes
Headset Profile v.1.2 (HSP) : HSP and HSP-AG modes
Phone Book Access Profile (PBAP) : PBAP client
Message Access Profile (MAP) : Client
Device Identification Profile (DI)

Proprietary profiles:

Apple iAP profile
Bluegiga proprietary IO Profile (BGIO)
Bluegiga proprietary OTA (Over-the-Air configuration profile)

Bluetooth qualified
